Pipe Scaffold
Durable pipe scaffolding solutions for safe and efficient construction at any project site.
Walkthru Scaffold Frame
6’4″ High Frame 5′, 42″, 3′ Wide
Top Lock: 6″
4′ Stud Center
Made of High-Quality Steel
Lock Type: Drop Lock
Drilled Hole: 45 degree
Finish: Powder Coated Blue

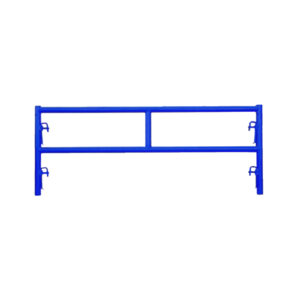

Masonry Scaffold Frame
5′ Wide 6’4″, 5′, 4′, 3′, 2′ High Frame
Top Lock: 6″
Made of High-Quality Steel
Lock Type: Drop Lock
Drilled Hole: 45 degree
Finish: Powder Coated Blue
Ladder Type Scaffold Frame
6’4″ High Frame 2′ & 3′ Wide
Top Lock: 6″
4′ Stud Center
Made of High-Quality Steel
Lock Type: Drop Lock
Drilled Hole: 45 degree
Finish: Powder Coated Blue

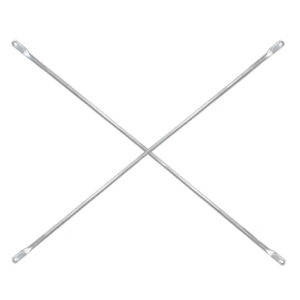

Scaffold Cross Braces
Durable construction with 1-inch O.D. galvanized steel tube for maximum longevity, 16-Gauge below sizes: –
4’x4′ 5’x4′ 6’x4′ 7’x2′
7’x3′ 7’x4′ 8’x1′ 8’x2′
8’x2′ 8’x3′ 8’x4′ 10’x4′
Scaffold Aluminum Plank
5′ Wide 5′ High Frame
Top Lock: 6″
4′ Stud Center
Made of High-Quality Steel
Lock Type: Drop Lock
Drilled Hole: 45 degree
Finish: Powder Coated Blue
Osha Plank
2″ x 10″ x 10′ OSHA Scaffold Plank
OSHA approved Scaffold Plank
Edges are “Clipped” to reduce end-shearing and ease of handling.
Ends are “Rodded” to reduce end cupping or splitting.
Screw Jack with Base Plate
24″ length, 18″ adjustable length
Notched 6″ from the top to prevent over-extending
6″ x 6″ Welded on Base Plate
Electroplated for longevity & rust prevention

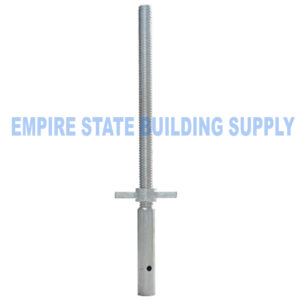

Socket Screw Jack
28″ overall stem length, 16″ adjustable stem length
Notched 6″ from the top to prevent over-extending
Socket accepts a 1-3/8″ stem of our 8″ Caster, Base Plate & Swivel Base Plate

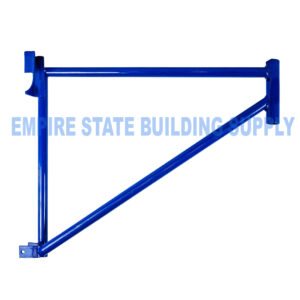

Side Bracket
20″, 30″, 40″, 50″ Side Bracket hold 2, 3, 4, 5 Planks.
Suitable for Aluminum Plank.
Made of High-Quality Steel
Finish: Powder Coated Blue
End Bracket
20″, 30″ End Bracket hold 2, 3 Planks.
Suitable for Aluminum Plank.
Made of High-Quality Steel
Finish: Powder Coated Blue
Scaffold Fix Base Plate
Base Plates provide a solid foundation for your frames and help to distribute weight evenly
Electroplated for longevity & rust prevention.
Designed for use on level surfaces.
it’s compatible with most scaffolding types.
Scaffold Swivel Base Plate
5′ Wide 2′ High Frame
Top Lock: 6″
1′ Stud Center
Made of High-Quality Steel
Lock Type: Drop Lock
Drilled Hole: 45 degree
Finish: Powder Coated Blue

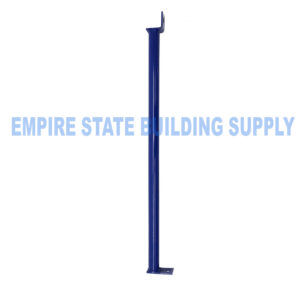

Scaffold Wall Tie
3′, 4′, 5′ and 6′ Length available
Wall ties are used in conjunction with clamps to connect scaffolding to the wall as you go up.

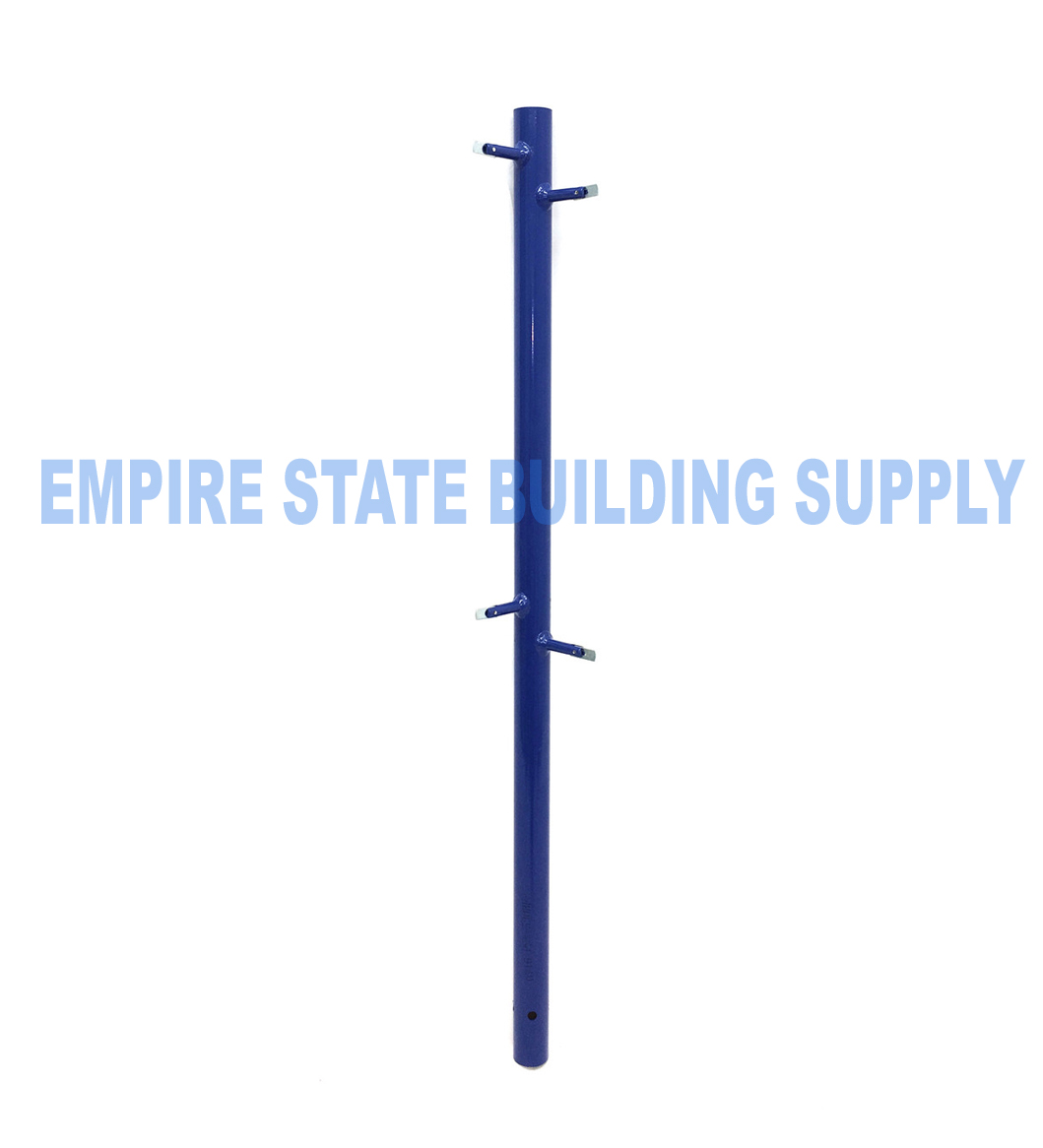

Guardrail Post
Female Corner Guardrail Post
Made of High-Quality Steel
Lock Type: Drop Lock
Drilled Hole: 45 degree
Finish: Powder Coated Blue

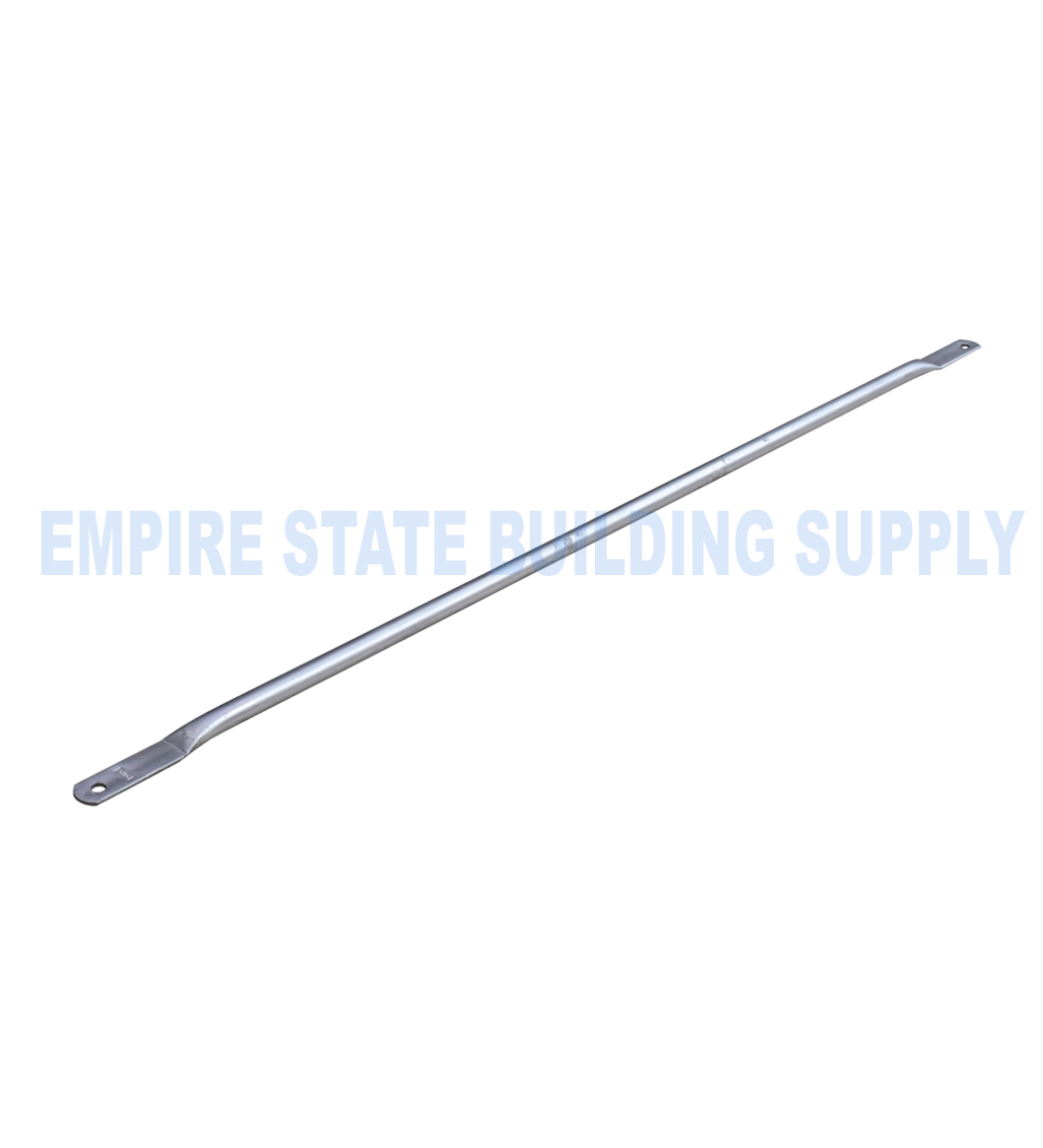

Single Guardrail
Available in 3′, 42″, 4′, 5′, 6′, 7′, 8′ Length
Meet OSHA fall protection requirements.
Ends of Guard Rails are stamped with dimensions
Pre-Galvanized for maximum longevity

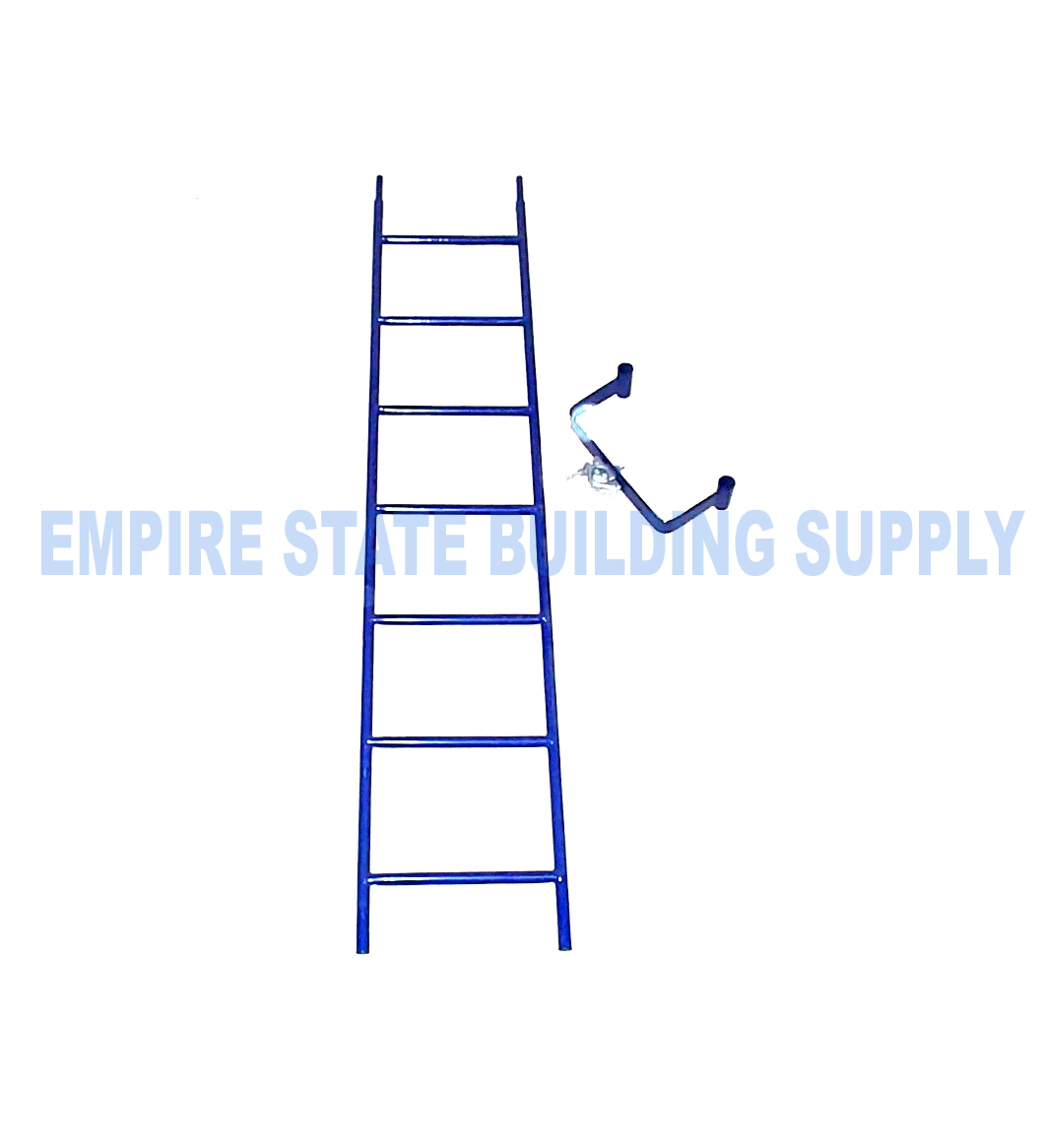

6' Access Ladder
6′ Access Ladder Width: 15″ (center of beam-to-center of beam)
Rung distance: 11″ (evenly spaced)
Constructed of high-strength steel.
This Access Ladder is stackable and can be attached to any of our Access Ladders.
Stairway
scaffolding stair unit is deigned to be used with walk-thru scaffolding frames. These stairs hook into the inside of the frame allowing you to create a stairwell out of your scaffolding. The stairs can be configured to either access multiple levels of scaffolding or for top access only. The scaffolding stair unit comes with inside and outside hand rails
8" Caster Wheel / Scaffold wheel
8″ caster wheel that used for stacking multiple scaffolding units.
two locking holes to fit more scaffold frames
Includes 6-millimeter wheel frame and rubber wheel fitted with a cast-iron hub with grease adaptor
Load capacity: 750 pounds
5' End Gate
49″ End Gate for walkthrough scaffolding Frame with 5′ width Increase safety and fall prevention
Made of High-Quality Steel
Finish: Powder Coated Blue
8' Double Guardrail
5′ Wide 2′ High Frame
Top Lock: 6″
1′ Stud Center
Made of High-Quality Steel
Lock Type: Drop Lock
Drilled Hole: 45 degree
Finish: Powder Coated Blue
9" Coupling Pin with Spring Pin
Coupling pin with 1″ collar, includes lock spring.
Use with standard or Walk Thru scaffold frames
Pin diameter 1-3/8″
overall length 9″
Gravity Pin
Premium Quality Scaffolding Toggle Locking Pins For Scaffold Frame.
Galvanized Scaffolding Toggle Pins 3″ Long 11/ 32″ Diameter.
Stair Pin
Made of High-Quality Steel
Electro Galvanized for Long Life
Span Pin / Caster Wheel Pin
Multi-use fastener with many applications. We commonly sell this square version with our Multifunction unit, because it is an ideal fit for the square tube
2"x2" swivel Clamp
2″ x 2″ Swivel Clamp
Fits 1.6″ – 2″ Scaffold Tubing
All Forged.
Zinc Plated.
Made of High Quality Steel
2"x2" Right Angle Clamp
2″ x 2″ Right Angle Clamp
Fits 1.6″ – 2″ Scaffold Tubing
All Forged.
Zinc Plated.
Made of High Quality Steel
2" Stud Clamp
2″ Stud Clamp
Fits 1.6″ – 2″ Scaffold Tubing
All Forged.
Zinc Plated.
Made of High Quality Steel
2" Beam Clamp
2″ Beam Clamp
All Forged.
Zinc Plated.
Made of High Quality Steel
This scaffolding clamp is designed to connect scaffold tubes directly to steel beams; 2″ opening.

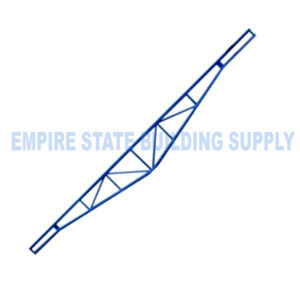

Deep Truss
16′, 18′, 20′, 22′, 24′ length
This Deep Truss is used to span openings such as doors, walkways, openings, windows, etc.
Putlog
10′, 12′, 14′ length
This Putlog is used to span openings such as doors, walkways, openings, windows, etc.
Putlog Hanger
Putlog Hanger Used to place a Scaffold Frame on top of a Putlog or Deep Truss.
For use with 1.69″ (1-11/16″) Scaffold Frames
Hole is drilled at a 45° to pin Scaffold Frame.
Finish: Powder Coated Blue
Scaffold Saddle Pin
Saddle Pin Used to place a Scaffold Frame on top of a Frame Bearer or Putlog.
Perfect for stacking a Narrow Frame on top of a Wider Frame.
For use with 1.69″ (1-11/16″) Scaffold Frames
Hole is drilled at a 45° to pin Scaffold Frame.
Parallel Hanger
This Putlog Hanger is used to support a Putlog (Truss).
Can be used at a Right Angle or Parallel to the Frame Bearer.
Slips over the top of the Frame Leg & Coupling Pin and is secured to the Frame Leg with the U-Bolt.

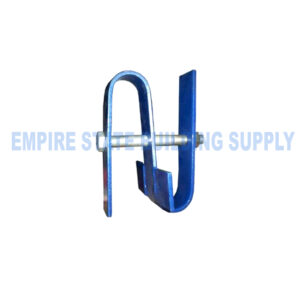

Right Angle Hanger
This Putlog Hanger is used to support a Putlog (Truss).
used at a Right Angle to the Frame Bearer.
secured to the Frame Leg with the Bolt.
Debris Netting
8’6″x150′ Black & White Color.
Fire Retardant.
1/4″, 1/8″ Hole Size
Debris Netting is your ultimate source protection from debris that falls from the working deck. Our heavy duty, fire resistant, OSHA Complied debris netting,
Scaffold Sheet
8’6″ x 100′ Scaffold Sheet.
Fire Retardant.
Durable and reusable.
Weather protection.
Scaffold sheeting is a laminated polypropylene material with reinforced webbing bands with the pre-punched eyelet holes in 4 in. intervals
Cable Tie
Different Sizes Available
UV Rated.
Made with High Quality Nylon
Operating Temperature -40º – 185º F
High Resistance To Sun & Outdoor Exposure
Smooth Finish, Saves Hands From Abrasion
Elastic Bungee / Toggle Tie
Elastic bungee toggle ties are a type of fastener which are similar to cable ties but have a plastic toggle at one end and a hook at the other end. They are made of elastic bungee cord that can stretch and contract to fit different sizes and shapes.
used in the scaffolding industry to tie scaffold sheeting
6' Baker Scaffold
1,100 lb (500 Kg) load capacity.
Stackable up to 3 units high.
Double locking 5″ casters
Quick and easy height adjustment.
ANSI and OSHA Approved.
This Baker Scaffold is a common choice for construction, industrial settings, and home renovation projects.
Adjustable at 2-inch increments.
safely reach up to 12 ft high
Baker Outrigger & Guardrail
Mandatory safety component when stacking scaffolding
14″ outriggers are mandatory for scaffolding two sections tall
Two doors on Guardrail allow easy access to the platform
Guardrail Includes toe board
ANSI and OSHA Approved.
12" Scaffolding Pulley
This Heavy-Duty Pulley can be use upto 1″ Rope Rated for 1,000 lb
Powdered Coated for long life.
Heavy-Duty Pulley Bracket
Heavy-Duty Hoist arm assembly attaches to the top of a frame by sliding down over a stack pin and a lower brace assembly fitting snuggly up with a Gravity pin assembly.
